Description

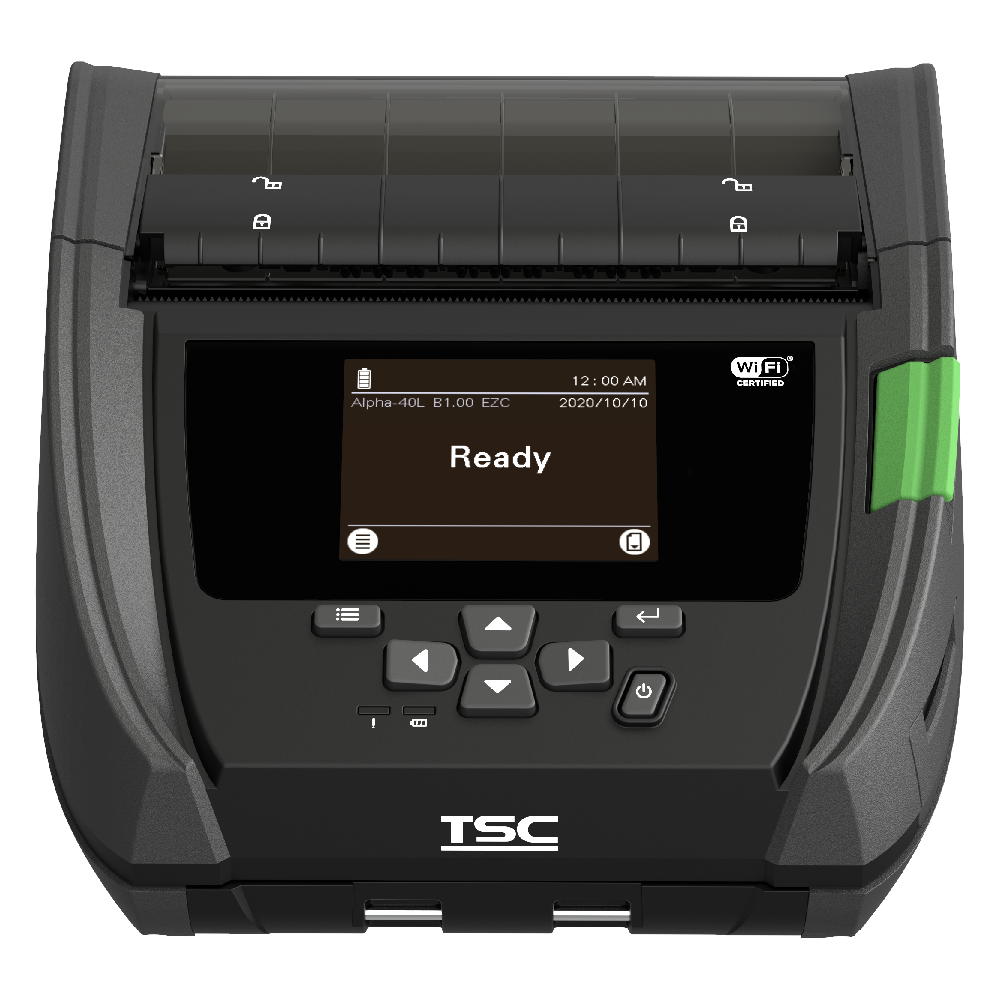

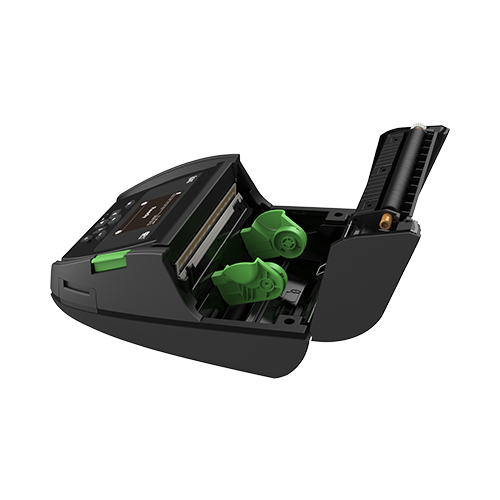

Printronix ALPHA-40L RFID Label Printer
The Printronix ALPHA-40L RFID is a high-performance, 4-inch wide mobile thermal printer designed for rugged environments and advanced track-and-trace applications. As a part of the premium TSC Printronix Auto ID mobile line, it combines the portability of a handheld device with the powerful RFID encoding capabilities typically found in industrial stationary printers.
Engineered for durability, it features a military-grade design that is IP54-rated for dust and water resistance and can withstand a 1.8-meter drop (extendable to 2.5 meters with a protective case). With its integrated RAIN UHF compliant encoder and auto-calibration function, the ALPHA-40L RFID allows users to print and encode smart labels on the go, significantly boosting productivity in retail, logistics, and manufacturing sectors.
Key Features
-
On-the-Go RFID Encoding: RAIN UHF compliant (GS1 EPC Gen2 v2 / ISO 18000-63) with a fixed position antenna for accurate label encoding.
-
Rugged Reliability: Meets MIL-STD-810G military standards for drop and vehicle vibration; IP54 rated for harsh environments.
-

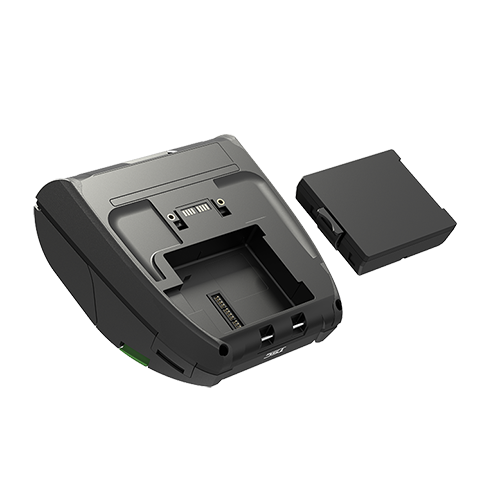

Intelligent Battery Management: Equipped with a 6,200 mAh smart battery that monitors health, charge cycles, and remaining capacity.
-
Seamless Connectivity: Supports Apple-certified MFi Bluetooth® 5.0 and 802.11 a/b/g/n/ac Wi-Fi for fast, secure roaming.
-
User-Friendly Interface: Includes a 2.3-inch color LCD display and intuitive navigation keys for easy setup and status monitoring.
-
Advanced Management: Fully compatible with SOTI Connect and TSC Console for remote printer management and real-time data visibility.
Technical Specifications
| Specification | Details |
| Print Method | Direct Thermal |
| Resolution | 203 DPI (8 dots/mm) |
| Max. Print Speed | Up to 5 IPS (127 mm/s) |
| Max. Print Width | 4.09 inches (104 mm) |
| Memory | 128 MB SDRAM / 128 MB Flash (Expandable via microSD up to 32 GB) |
| Battery | 7.4V DC, 6,200 mAh Li-ion rechargeable smart battery |
| Drop Rating | 1.8 m (6 ft) / 2.5 m (8.2 ft) with protective case |
| Interface | USB 2.0, Bluetooth 5.0, MFi, NFC Tag, Optional Wi-Fi |
| RFID Support | RAIN UHF (GS1 EPC Gen2 v2 / ISO 18000-63) |
| Sensors | Reflective, Transmissive, Peel, Head Open |
Why Buy from Mindware?
-
Authorized Partner for TSC Printers
-
Sales & Service Center for TSC Barcode Printers
-
Supplier & Distributor Across India
-
1-Year Warranty
-
Free Installation & Technical Support
-
Genuine Spare Parts & Consumables
