Description

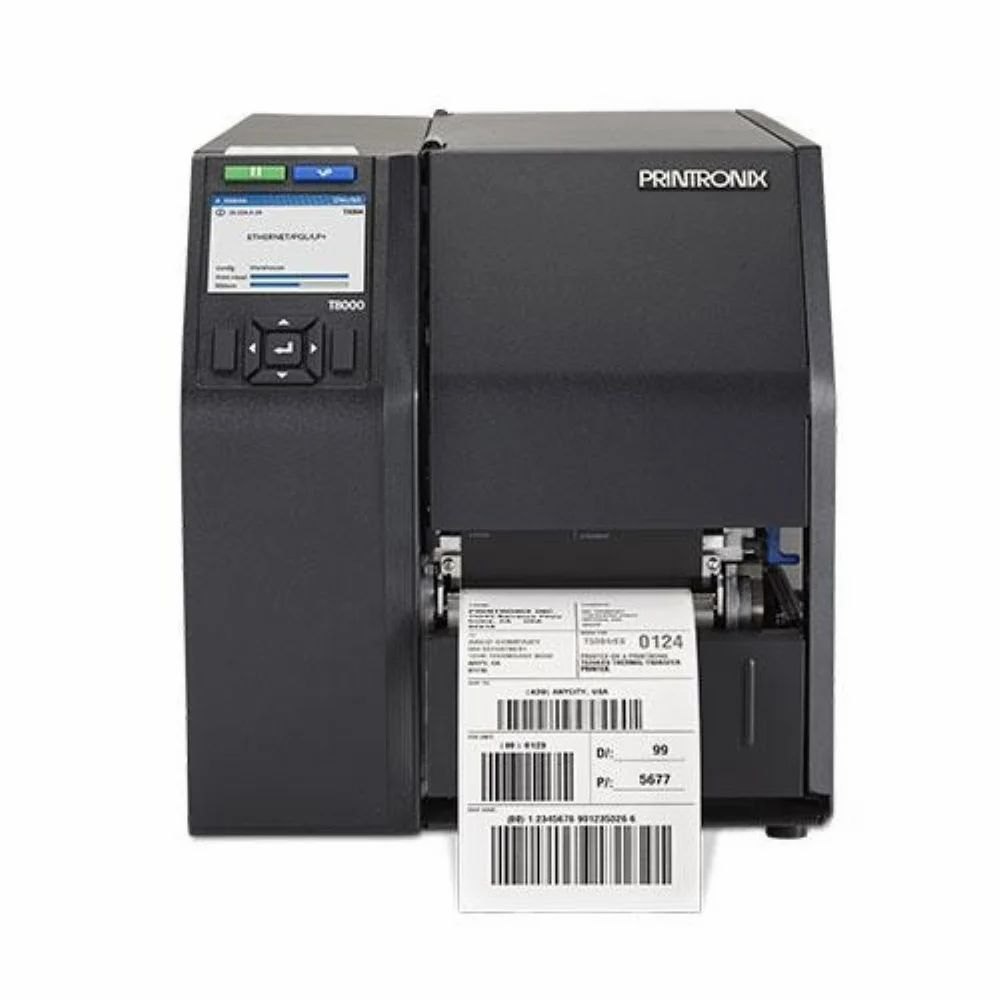

The Printronix T8204e ODV-2D RFID Label Printer is the ultimate enterprise-level solution for mission-critical industrial applications. Combining high-speed thermal printing, integrated RFID encoding, and real-time 1D/2D barcode verification, this “all-in-one” workhorse ensures that every label produced is 100% accurate and compliant, virtually eliminating costly chargebacks and shipping errors.
Key Features
-
Integrated ODV-2D Verification: Automatically scans, grades, and validates every 1D and 2D barcode as it prints. If a barcode fails to meet ISO standards, the printer overstrikes the bad label and automatically reprints a new one.
-
RFID Encoding: Supports high-performance UHF RFID encoding (EPC Gen2 V2), allowing you to print, verify, and encode RFID tags in a single pass.
-
Rugged Industrial Build: Features a heavy-duty die-cast aluminum frame and metal doors designed for 24/7 operation in harsh environments, including sub-zero temperatures.
-
High-Speed Productivity: Capable of printing at speeds up to 14 inches per second (ips) with a 203 dpi resolution.
-
Advanced Connectivity: Comes standard with Ethernet, USB, and Serial interfaces, with optional Wi-Fi (802.11ac) and Bluetooth connectivity.
-
User-Friendly Interface: Includes a 3.5-inch full-color display with intuitive navigation keys and a self-help wizard for easy setup.
Product Specifications
| Feature | Specification |
| Print Method | Thermal Transfer / Direct Thermal |
| Resolution | 203 dpi (8 dots/mm) |
| Max. Print Width | 4.1 inches (104 mm) |
| Max. Print Speed | 14 ips (356 mm/s) |
| Memory | 512MB RAM / 128MB Flash |
| RFID Support | UHF EPC Gen 2 V2; ISO/IEC 18000-6C |
| Verification | Integrated ODV-2D (Grades 1D/2D to ISO standards) |
| Ribbon Capacity | 625 Meters |
| Emulations | PGL, ZPL, DPL, IPL, SATO, Postscript/PDF |
| Operating Temp | -5°C to 40°C (Direct Thermal) / 5°C to 40°C (Thermal Transfer) |
