Description

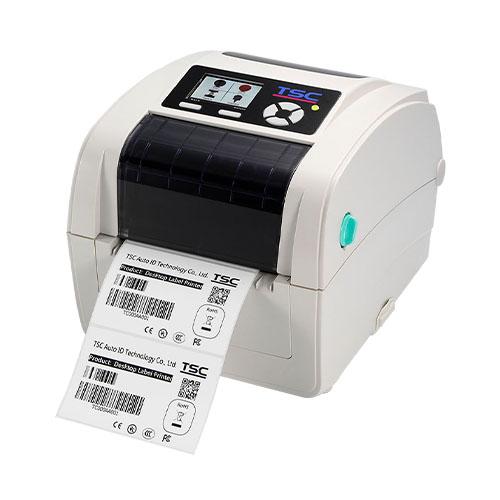

TSC TC210 Barcode Label Printer
The TSC TC210 is a premium performance desktop barcode printer designed to provide the perfect balance of compact size and high-speed efficiency. Building on the legacy of the bestselling TTP-245C series, the TC210 features a vivid 2.3″ color TFT display and an intuitive 6-button interface that simplifies operation and troubleshooting.
With its 203 DPI resolution and fast printing capabilities, it is an ideal choice for point-of-sale, retail tagging, and inventory management. The double-walled clamshell design makes it rugged enough for industrial environments while remaining small enough to fit on crowded desks.
Key Features
-
Intuitive Navigation: 2.3″ color TFT display with 6-button controls for easy setup.
-
Fast Printing: High speed of up to 6 inches per second (152 mm/s).
-
Compact Design: Space-saving footprint perfect for tight workspaces.
-
Enhanced Memory: Built-in 128 MB Flash and 64 MB SDRAM for faster processing.
-
Expandable Storage: Integrated microSD card reader supports up to 32 GB of additional memory.
-
Versatile Connectivity: Includes Ethernet, USB 2.0, RS-232, and a USB Host port for scanners or keyboards.
-
Easy Media Loading: Center-biased spring-loaded design for effortless label and ribbon installation.
Technical Specifications
| Feature | Specification |
| Print Resolution | 203 DPI (8 dots/mm) |
| Print Method | Thermal Transfer & Direct Thermal |
| Max. Print Speed | 152 mm (6″)/second |
| Max. Print Width | 108 mm (4.25″) |
| Max. Print Length | 2,286 mm (90″) |
| Memory | 128 MB Flash / 64 MB SDRAM |
| Display | 2.3″ color TFT display (320 x 240 pixel) |
| Ribbon Capacity | 110 m long, 0.5″ notched core (Ink coated outside) |
| Media Capacity | 127 mm (5″) OD internal roll |
| Connectivity | USB 2.0, Serial (RS-232), Ethernet, USB Host |
| Software Support | TSPL-EZD (Compatible with EPL, ZPL, ZPL II, DPL) |
