Description

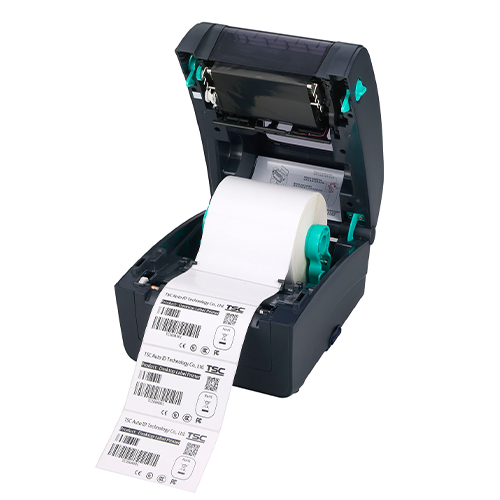

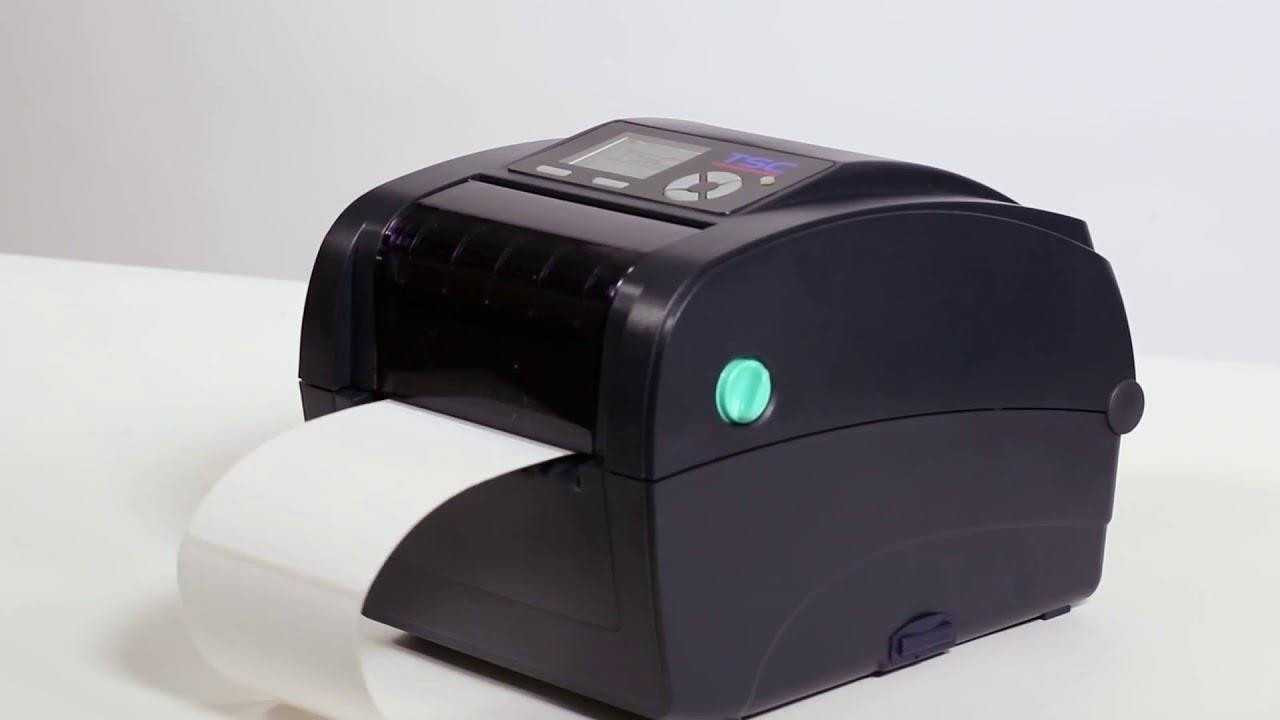

TSC TC310 Barcode Label Printer
The TSC TC310 is a premium performance desktop barcode printer designed to provide high-quality, high-resolution labeling in a space-saving footprint. As an evolution of the bestselling TTP-245C series, the TC310 features a 300 DPI resolution that ensures crisp, sharp printing of small fonts, intricate graphics, and high-density barcodes.
Equipped with a 2.3-inch color TFT display and a high-speed processor, it offers an intuitive user experience and rapid data processing. Its rugged double-walled clamshell design makes it a reliable choice for retail, healthcare, and office environments where space is at a premium but industrial-grade performance is required.
Key Features
-
High-Resolution Printing: 300 DPI for professional-grade labels and fine-text clarity.
-
Color LCD Display: 2.3-inch TFT display for easy printer status monitoring and configuration.
-
Compact Footprint: Space-saving design ideal for crowded desktops and workstations.
-
Versatile Media Support: Handles ribbons up to 110 meters and label rolls up to 5 inches in diameter.
-
Fast Data Processing: 128 MB Flash and 64 MB SDRAM memory for handling complex label formats.
-
Flexible Connectivity: Standard USB 2.0, Ethernet, Serial RS-232, and USB Host for scanners or keyboards.
-
Ease of Use: User-friendly spring-loaded center-biased clamshell design for quick media loading.
Technical Specifications
| Feature | Specification |
| Print Resolution | 300 DPI (12 dots/mm) |
| Print Method | Thermal Transfer & Direct Thermal |
| Max. Print Speed | 102 mm (4″)/second |
| Max. Print Width | 105.6 mm (4.16″) |
| Max. Print Length | 11,430 mm (450″) |
| Memory | 128 MB Flash / 64 MB SDRAM |
| Expansion Slot | SD Card reader for expansion up to 32 GB |
| Ribbon Capacity | 110 m long, 0.5″ core (Ink coated outside) |
| Display | 2.3” color TFT display (320 x 240 pixel) |
| Standard Interfaces | USB 2.0, RS-232, Ethernet, USB Host |
| Printer Language | TSPL-EZD (Compatible with EPL, ZPL, ZPL II, DPL) |
