Description

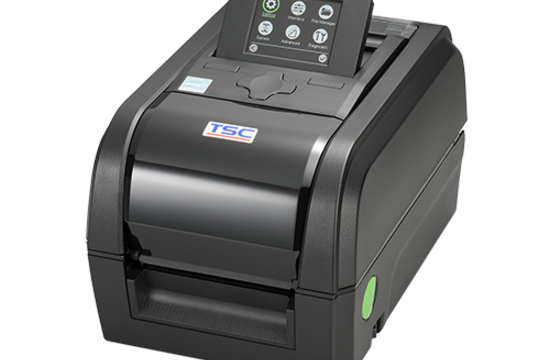

TSC TX310 Barcode Label Printer

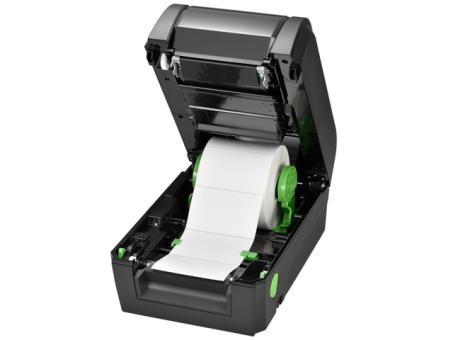

The TSC TX310 is a high-performance desktop barcode printer engineered to deliver precision and durability for demanding labeling applications. Featuring a 300 DPI high-resolution printhead, it is perfect for producing crisp, clear text and intricate barcodes, even on very small labels. Its rugged, double-walled clamshell design ensures it can withstand harsh environments while remaining user-friendly for media and ribbon installation.
Whether you are in manufacturing, healthcare, or logistics, the TX310 provides industrial-level reliability in a compact desktop footprint, supporting large 300-meter ribbons to minimize downtime.
Key Features
-
Superior Resolution: 300 DPI for high-quality graphics and fine-text barcodes.
-
High-Speed Performance: Print speeds of up to 6 inches per second (152 mm/s).
-
Robust Build: Durable double-walled plastic enclosure for long-term industrial use.
-
Generous Media Capacity: Supports 300-meter ribbons and 5-inch OD media rolls.
-

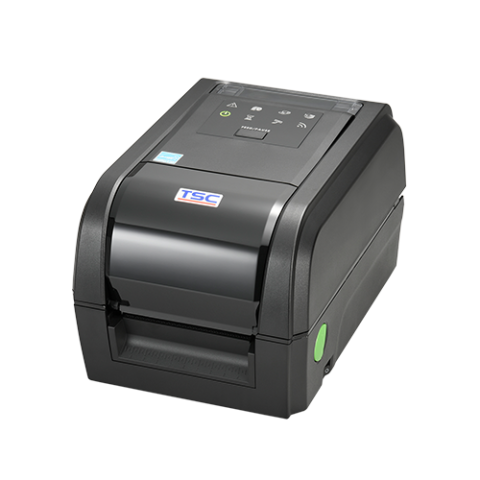

User-Friendly Interface: Large LED icon panel for easy status monitoring.
-
Versatile Connectivity: Standard USB 2.0, RS-232, Ethernet, and USB Host interfaces.
-
Remote Management: Supports TSC Console and SOTI Connect for easy fleet management.
Technical Specifications
| Feature | Specification |
| Print Resolution | 300 DPI (12 dots/mm) |
| Print Method | Thermal Transfer & Direct Thermal |
| Max. Print Speed | 152 mm (6″)/second |
| Max. Print Width | 106 mm (4.17″) |
| Max. Print Length | 11,430 mm (450″) |
| Memory | 128 MB Flash / 128 MB SDRAM |
| Expansion Slot | microSD card reader (up to 32 GB) |
| Ribbon Capacity | 300 m long, 1″ core (Ink coated outside) |
| Media Width | 19 mm – 112 mm (0.75″ – 4.4″) |
| Interfaces | USB 2.0, RS-232, Ethernet, USB Host |
| Printer Language | TSPL-EZD (Compatible with EPL, ZPL, ZPL II, DPL) |
